Active Car Kit for ICOM radios IC-F31.
Usable with batteries BP-120, BP-211, BP-210, BP-210N, BP-210FM and CPIB210N.
**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC664
1x DC Cable \[800023\]
1x Mounting Bracket \[800360\]
1x Cable tie \[700113\]

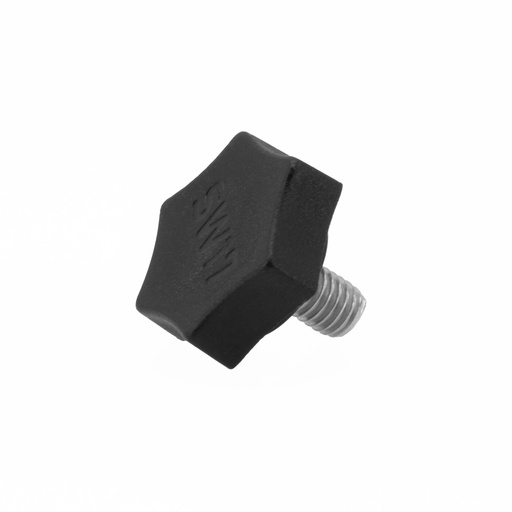

4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC664 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Active Car Kit for KENWOOD radios TK-2140 and TK-3140.
Usable with batteries KNB-35L, KNB-24L, KNB-57L, KNB-55L, KNB-26N, KNB-25A and KNB-24L.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket. For example a to evaluate
which radio channel is currently being used.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC668
1x DC Cable \[800023\]
1x Mounting Bracket \[800443\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC668 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Desk Charger for SEPURA SC20, STP8000 and STP9000.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-1702
1x Power Supply \[700472\]
1x Manual

Passive Car Kit for SEPURA radios SBP8040.
Usable with batteries 300-01061.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC622
1x DC Cable \[800023\]
1x Mounting Bracket \[800817\]
1x Cable tie \[700113\]
4x Screw \[800025\]

PassivPlus Car Kit for VERTEX radios VX925.
Usable with batteries FNB-V87LI and FNB-V87LIA.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC678
1x DC Cable \[800023\]
1x Mounting Bracket \[800766\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

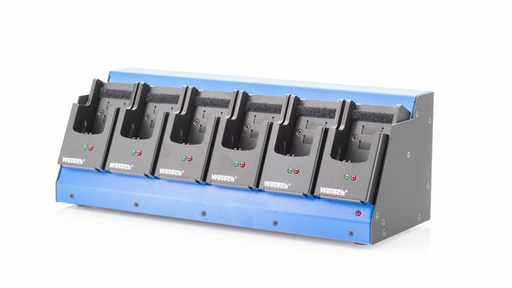

1x DC6-680
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA batteries FTN6514, FTN4331 and PMNN4351.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

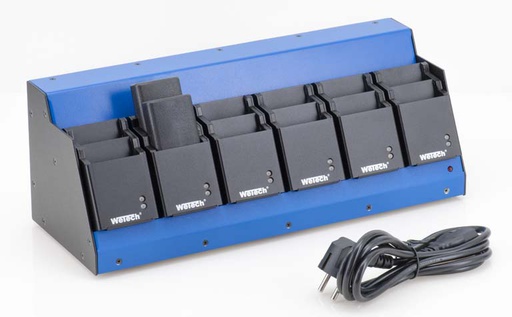

1x DC6-690
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850s, MTP850FuG, CEP400, MTH650 and MTH800.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

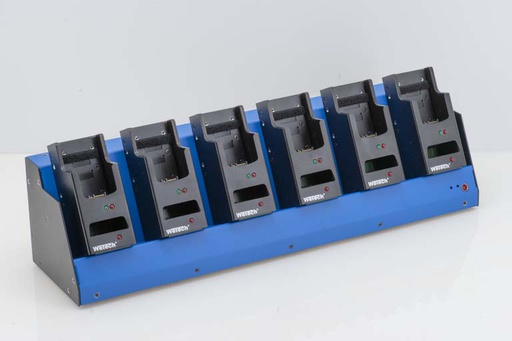

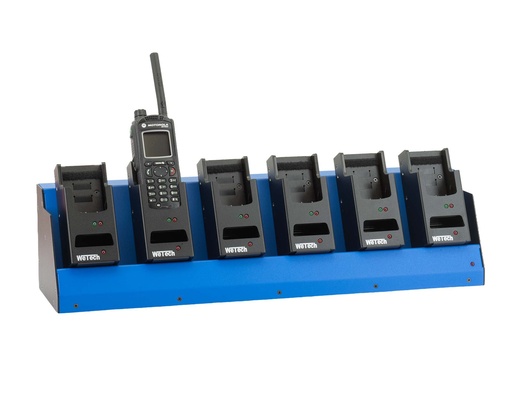

A special highlight of the DP6-692USB is the additional possibility of charging an additional battery in each charging slot.
This saves space for spare batteries in your Operations Control Center.

**Scope of Delivery**

1x DC6-692 bV
1x Power Cable \[700472\]
1x Manual

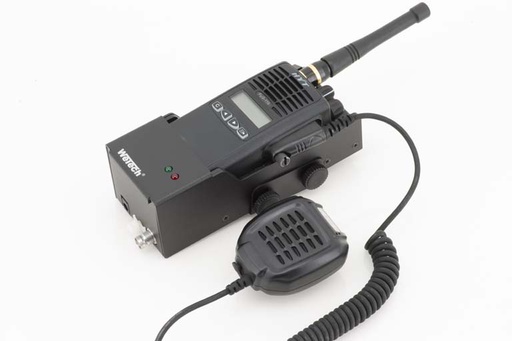

PassivPlus Car Kit for HYT Funkgeräte TC3600-11b.
Usable with batteries BL-3600A und BL2104.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC674
1x DC Cable \[800023\]
1x Mounting Bracket \[800608\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG,
and also for the batteries FTN6514, FTN4331 and PMNN4351.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected. This version has an additional charging slot for two spare batteries.
This gives you the opportunity to quickly swap a full battery for an empty one.
With the BNC connection you are able to connect an external antenna at the DC676BNC-690.

**Scope of Delivery**

1x DC676BNC-690
1x Power Cable \[700438\]
1x Manual

Desk Charger for MOTOROLA radios MTP6550, MTP6650 and MTP6750,
and also for the batteries NNTN8020 and NNTN8023.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected. This version has an additional charging slot for two spare batteries.
This gives you the opportunity to quickly swap a full battery for an empty one.

**Scope of Delivery**

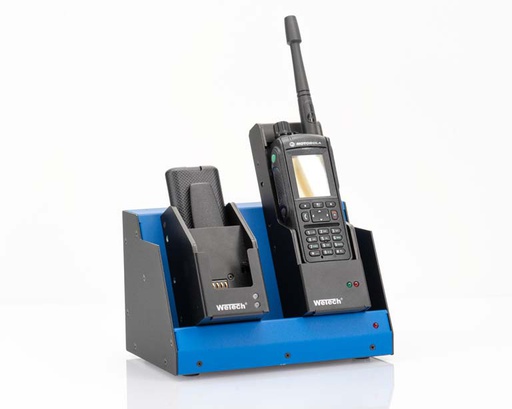

1x DC623BNC-695
1x Power Cable \[700437\]
1x Manual

Desk Charger for MOTOROLA radios MTP6550, MTP6650 and MTP6750,
and also for the batteries NNTN8020 and NNTN8023.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected. This version has an additional charging slot for two spare batteries.
This gives you the opportunity to quickly swap a full battery for an empty one.

**Scope of Delivery**

1x DC623BNC
1x Power Cable \[700471\]
1x Manual

Active Car Kit for MOTOROLA radios GP1200, GP900, MTS2000, HT1000 and CENELEC.
Usable with batteries RNN4008BR, WPNN4013A, WPNN4037A, NTN7144C and H7144.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC606
1x DC Cable \[800023\]
1x Mounting Bracket \[800017\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC606 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Passive Car Kit for MATRA radios M2620 TETRAPOL.
Usable with batteries HR1954AAB02, HR5932CAA01, HR5932CAB03, HR7365AAB01, T9620MH, HR3171AAA01, H9620-M(25) and KB22.

**General Description**

The WTC661 has a Lever Mechanism to lock the radio in the passive Car Kit.
It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC661
1x DC Cable \[800023\]
1x Mounting Bracket \[800379\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Active Car Kit for KENWOOD radio TK-2180 and TK-3180.
Usable with batteries KNB-31A, KNB-32N and KNB-33L.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket. For example a to evaluate
which radio channel is currently being used.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC663
1x DC Cable \[800023\]
1x Mounting Bracket \[800420\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC663 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Desk Charger for SEPURA radio STP8X138.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-689
1x Power Supply \[700472\]
1x Manual

Car-Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.

**General Description**

The Desk Charger is available in different versions. Up to four charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC4-680
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
Usable with batteries FTN6574, FTN4331 and PMNN435.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC680-4-690-2
1x Power Cable \[700472\]
1x Manual

Programming Station for MOTOROLA radios MTP3250 und MTP6750.

**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.


**Scope of Delivery**

1x DP1-669USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual

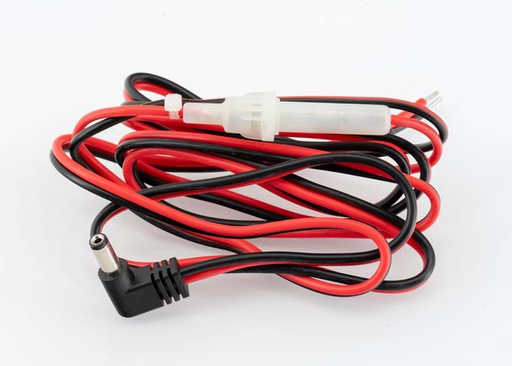

DC-Cable with blade fuse to supply the Wetech Car Kit.

**General Description**

The red wire can be connected to a 12V or 24V battery. The black wire should be connected to the ground (GND). Total length: 160 cm


**Compatibility**

Suitable to all Wetech Car Kits

**Scope of Delivery**

1x DC-Cable with blade fuse (new version)
