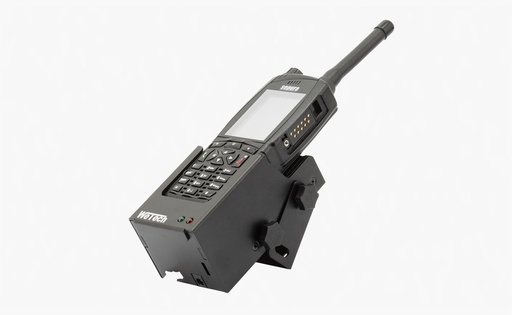

Passive Car Kit for SEPURA radio SC2020, STP8000 und STP9000.
Usable with original batteries.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC1702
1x DC Cable \[800023\]
1x Mounting Bracket \[800551\]
1x Cable tie \[700113\]
4x Screw \[800025\]



**Expansion for SEPURA SC21**

It is also possible to charge and program SEPURA SC21 radio in this Programming Station.
The Adapter Plate SC21 is inserted into the Charging Slot (see picture on the right).
The Adapter Plate is to purchase separately.

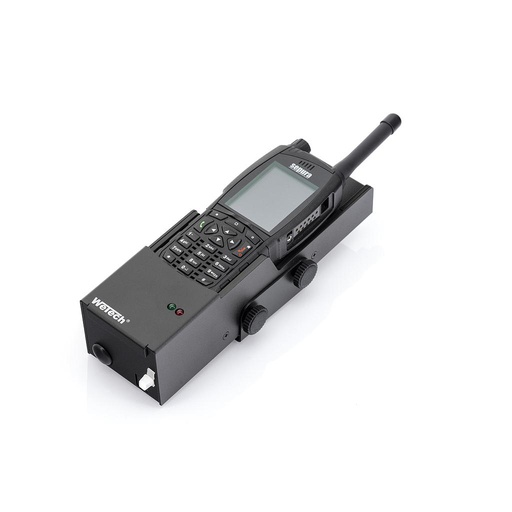

Passive Car Kit for SEPURA radios STP8000, STP9000 and SC20.
Usable with original batteries.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1803
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

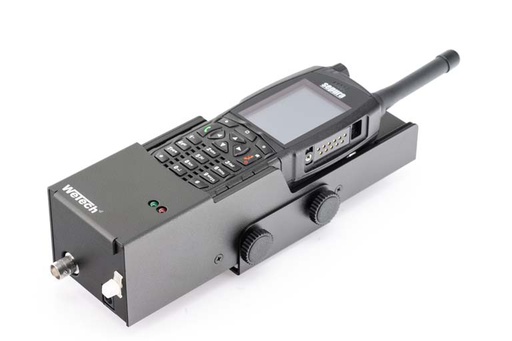

PassivPlus Car Kit for SEPURA radios STP8000, STP9000 and SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1703
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for SEPURA Funkgeräte STP8000 und STP9000.
Usable with original batteries.
**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC681
1x DC Cable \[800023\]
1x Mounting Bracket \[800551\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for SEPURA radios STP8X138.
Usable with batteries 300-00910.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Advice**

The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x WTC689
1x DC Cable \[800023\]
1x Mounting Bracket \[800551\]
1x Cable tie \[700113\]
4x Screw \[800025\]

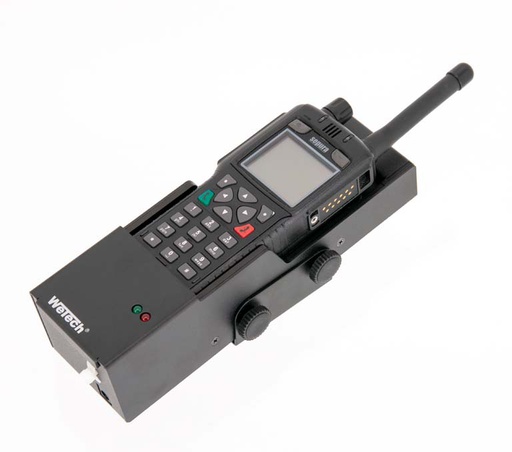

Passive Car Kit for SEPURA radios STP8000 and STP9000.
Usable with original batteries.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC621
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive 2-in-1 Car Kit for SEPURA batteries of radios STP8000, STP9000, SC2020 and SC2021.
**General Description**

The 2-in-1 Car Kit gives the opportunity to charge two additional batteries of your radio in your car.
The active function wether Fast Charge or Trickle Charge is displayed by the bicolour LED (red or green) for every charging slot.

**Scope of Delivery**

1x WTC691
1x DC Cable \[800023\]
1x Mounting Bracket \[800838\]
1x Cable tie \[700113\]
4x Screw \[800025\]

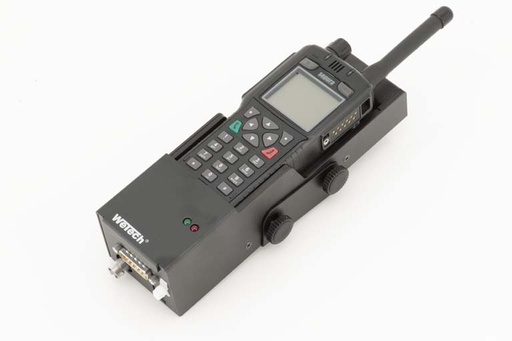

PassivPlus Car Kit for SEPURA radios STP8000 and STP9000.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
Additional Accessory can be connected by SUB-D socket, for example a RS232 programming cable. Please note the pin assignment (see below).
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC672
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

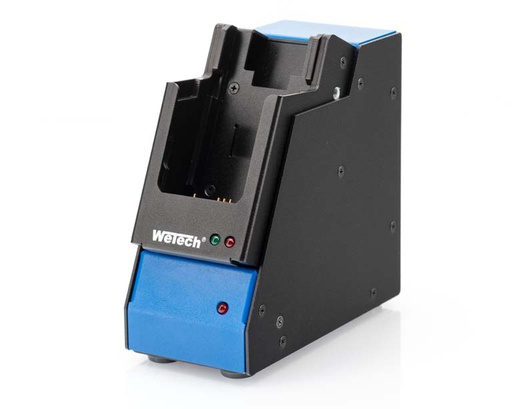

Programming Station for SEPURA radios SC2020.

**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP1-1702USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual



**Expansion for SEPURA SC21**

It is also possible to charge and program SEPURA SC21 radio in this Programming Station.
The Adapter Plate SC21 is inserted into the Charging Slot (see picture on the right).
The Adapter Plate is to purchase separately.

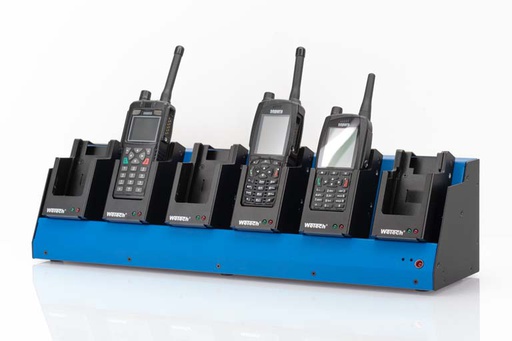

Programming Station for SEPURA radios SC20, STP8000, STP9000.

**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Special Solution**

This programming station was developed for the common SEPURA radios.
There are three charging slots for the STP8000 and STP9000 series and three charging slots for the SC20.

**Scope of Delivery**

1x DP6-1702-3-681-3USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

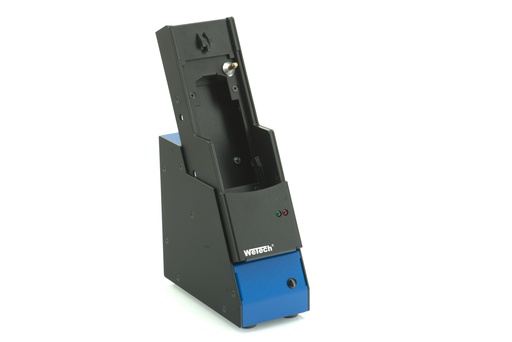

Desk Charger for SEPURA radios SC20, STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-1703BNC
1x Power Supply \[700471\]
1x Manual

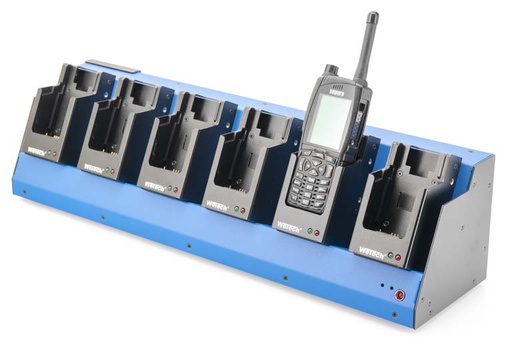

Programming Station for SEPURA radios SC20.

**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-1702USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

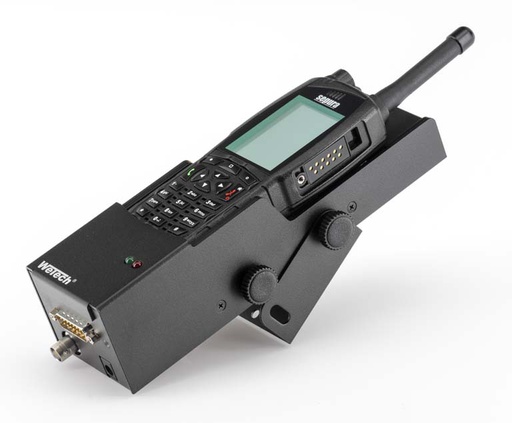

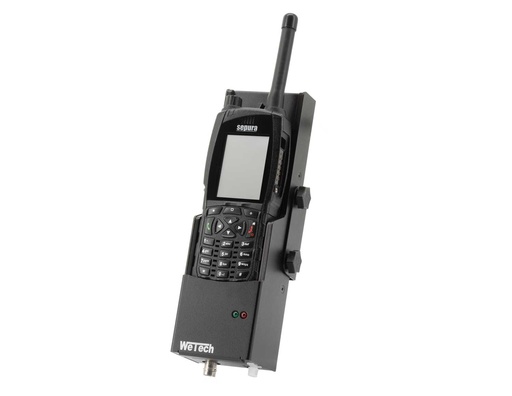

PassivPlus Car Kit for SEPURA radios SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
A data interface is also integrated in the WTC1902SER. A RS232 programming cable, for example, can be connected here.
Please note the pin assignment (see below). To use the PEI function, an additional license for the radio is required.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1902SER
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

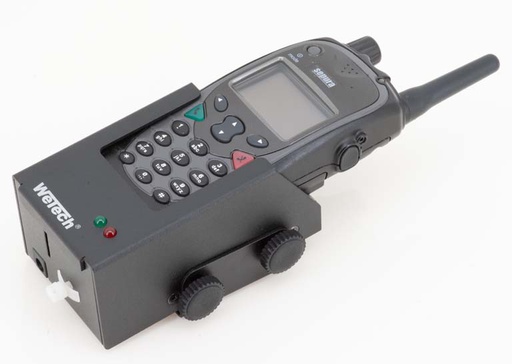

Passive Car Kit for SEPURA Funkgeräte SRH3800 und SRH3900.
Usable with batteries 978-0546, 771-1263 and 771-1213.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC683
1x DC Cable \[800023\]
1x Mounting Bracket \[800509\]
1x Cable tie \[700113\]
4x Screw \[800025\]

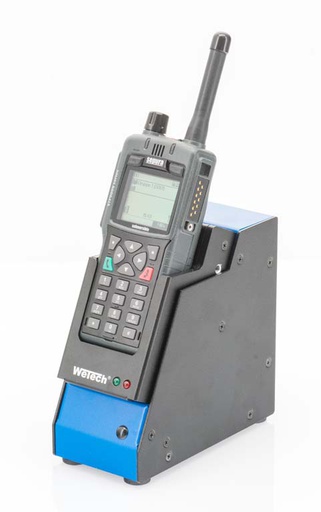

Programming Station for SEPURA radios STP8000 and STP9000.
**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP1-681USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual

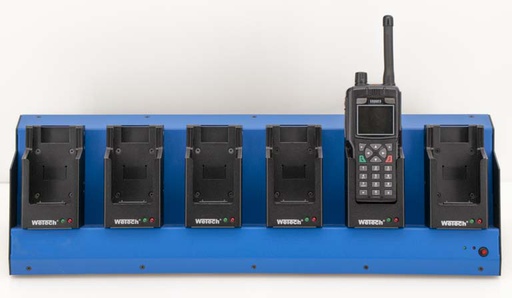

Programming Station for SEPURA radios STP8000 and STP9000.
**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-681USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

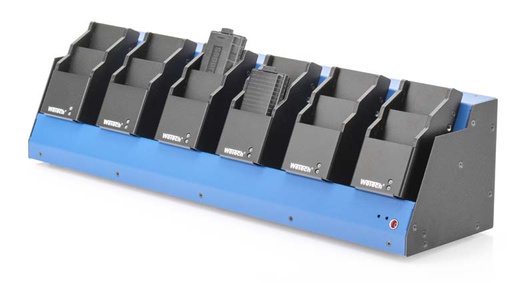

Desk Charger for SEPURA batteries of STP8000 and STP9000 series.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-691
1x Power Cable \[700472\]
1x Manual

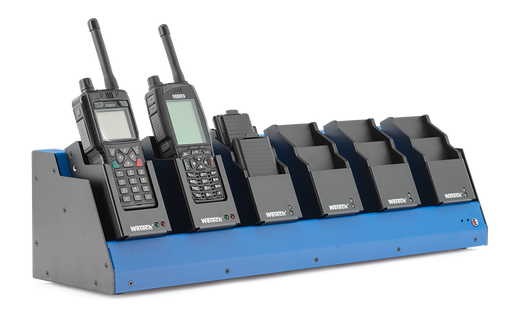

Desk Charger for SEPURA radios SC20, STP8000 and STP9000.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC1702-2-691-4 bV
1x Power Cable \[700472\]
1x Manual

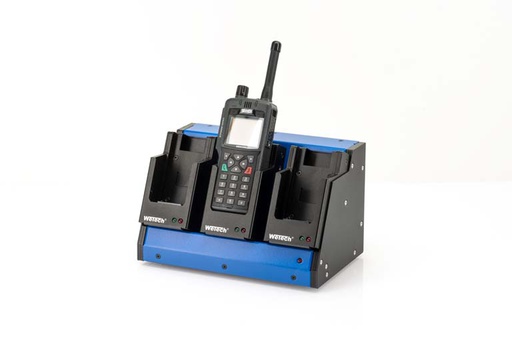

Car-Desk Charger for SEPURA radios STP8000 and STP9000.

**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Scope of Delivery**

1x DC681-3KFZ
1x Manual

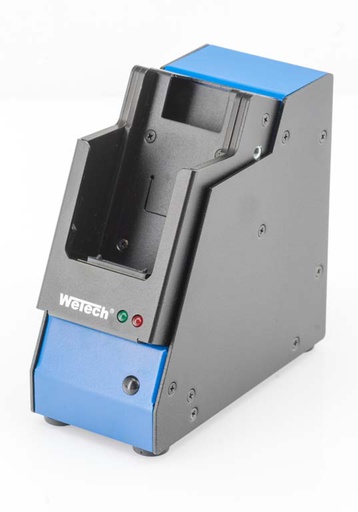

Desk Charger for SEPURA radios STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-681
1x Power Supply \[700471\]
1x Manual
