Passive Car Kit for KENWOOD radios TK-2140, TK-3160, TK-3170, NX-220, NX-3200 and TK320.
Usable with batteries KNB-26N, KNB-25A, KNB-24L, KNB-55L, KNB-35L and KNB-57L.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC646
1x DC Cable \[800023\]
1x Mounting Bracket \[800258\]
1x Cable tie \[700113\]
4x Screw \[800025\]

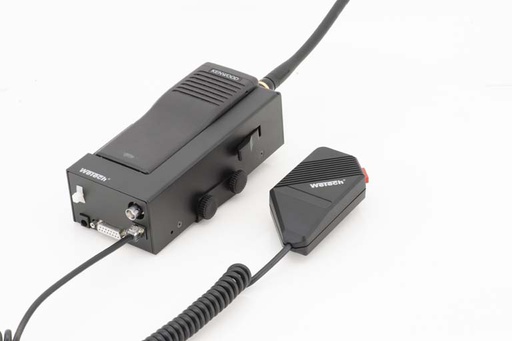

Active Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-17 and R290.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC632
1x DC Cable \[800023\]
1x Mounting Bracket \[800229\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC632 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

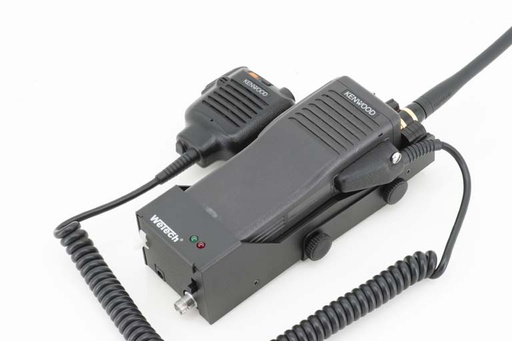

PassivPlus Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-21N, CPKKNB17A and R290.
**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.
**Scope of Delivery**

1x WTC675
1x DC Cable \[800023\]
1x Mounting Bracket \[800644\]
1x Cable tie \[700113\]
4x Screw \[800025\]

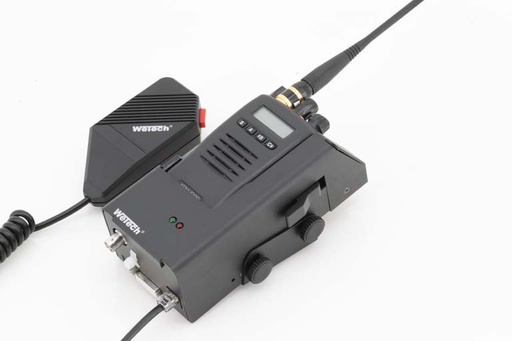

Active Car Kit for KENWOOD radios TK-2140 and TK-3140.
Usable with batteries KNB-35L, KNB-24L, KNB-57L, KNB-55L, KNB-26N, KNB-25A and KNB-24L.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket. For example a to evaluate
which radio channel is currently being used.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC668
1x DC Cable \[800023\]
1x Mounting Bracket \[800443\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC668 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

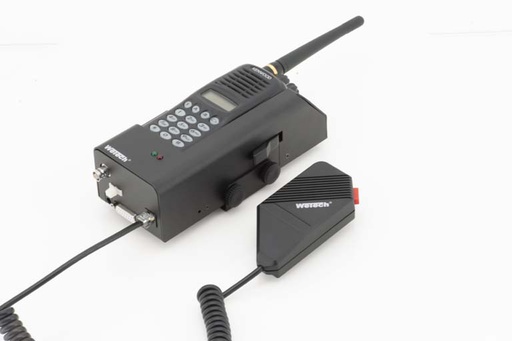

Active Car Kit for KENWOOD radio TK-2180 and TK-3180.
Usable with batteries KNB-31A, KNB-32N and KNB-33L.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket. For example a to evaluate
which radio channel is currently being used.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC663
1x DC Cable \[800023\]
1x Mounting Bracket \[800420\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC663 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

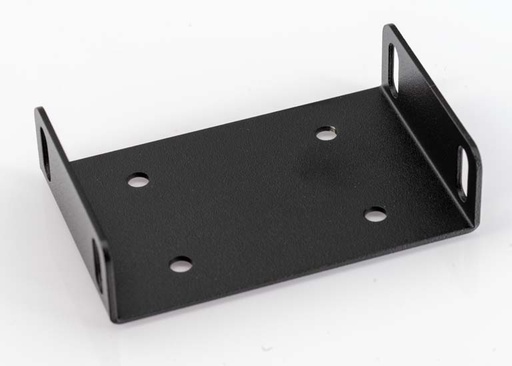

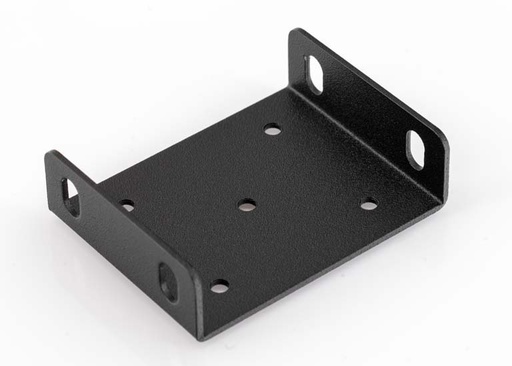

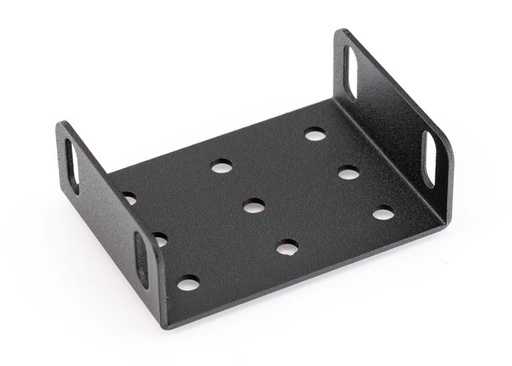

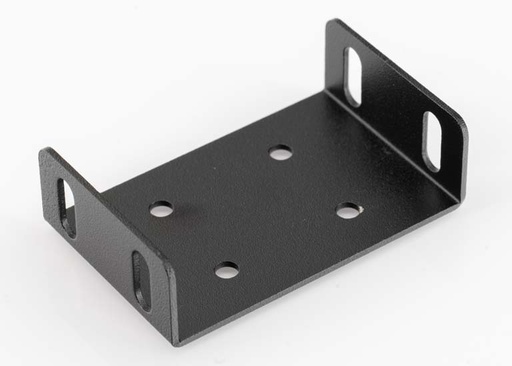

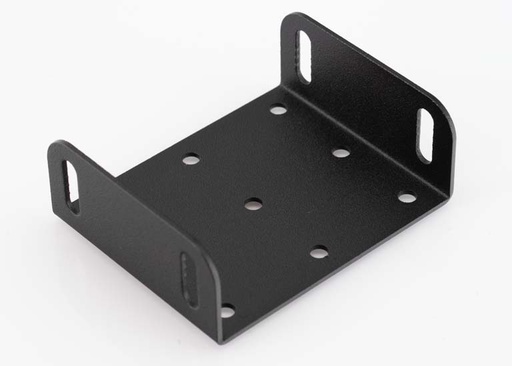

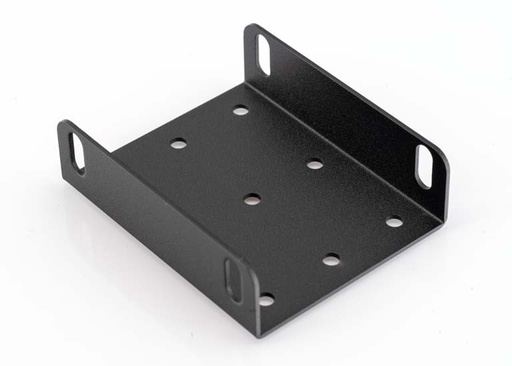

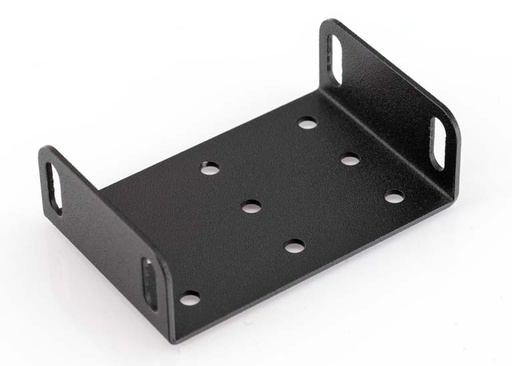

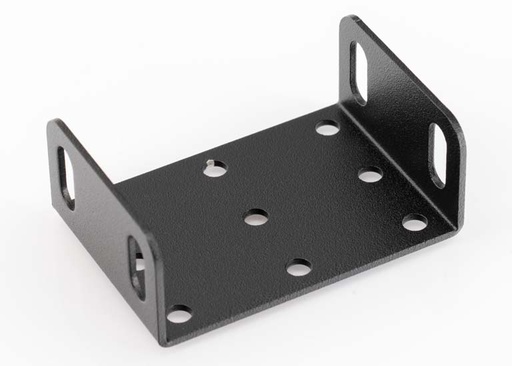

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.

The WeTech mounting bracket is used to attach the Car Kit. The inclination of the cradle can be adjusted through the lateral slotted holes.
