Passive Car Kit for EXCERA radio EP8100.
Usable with batteries EB242L.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1804
1x DC Cable \[800023\]
1x Mounting Bracket \[800784\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-680 bV
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP3100, MTP3150, MTP3200, MTP3250, MTP3500, MTP3550, MTP6550, MTP6650 and MTP6750.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-669 bV
1x Power Cable \[700472\]
1x Manual

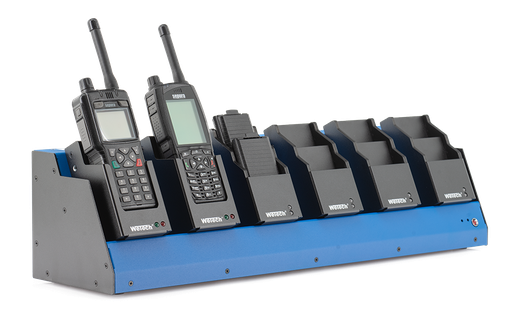

Desk Charger for SEPURA radios SC20, STP8000 and STP9000.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC1702-2-691-4 bV
1x Power Cable \[700472\]
1x Manual

Passive Car Kit for ICOM radio IP100H.
Usable with original batteries.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1901
1x DC Cable \[800023\]
1x Mounting Bracket \[800987\]
1x Cable tie \[700113\]
4x Screw \[800025\]

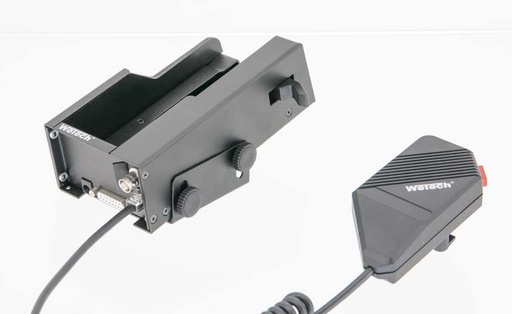

Active Car Kit for MOTOROLA radios GP1200, GP900 and HT1000.
Usable with batteries NTN7143, AL7143CD, H7143RX, H7143Li.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC601
1x DC Cable \[800023\]
1x Mounting Bracket \[800017\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC601 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Programming Station for MOTOROLA radios MTP850, MTP850S and MTP850FuG.

**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP1-680USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual

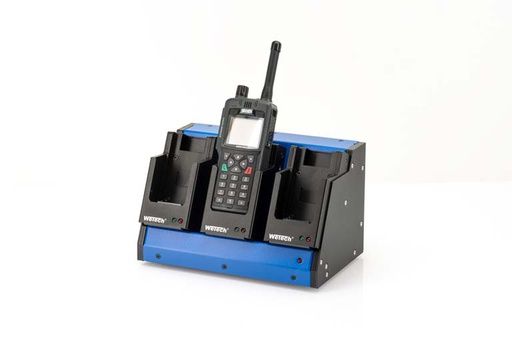

Car-Desk Charger for SEPURA radios STP8000 and STP9000.

**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Scope of Delivery**

1x DC681-3KFZ
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S und MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-676
1x Power Supply \[700471\]
1x Manual

PassivPlus Car Kit for REXON radios RL328S.
Usable with batteries BP21L und BP30L.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC617
1x DC Cable \[800023\]
1x Mounting Bracket \[800706\]
1x Cable tie \[700113\]
4x Screw \[800025\]

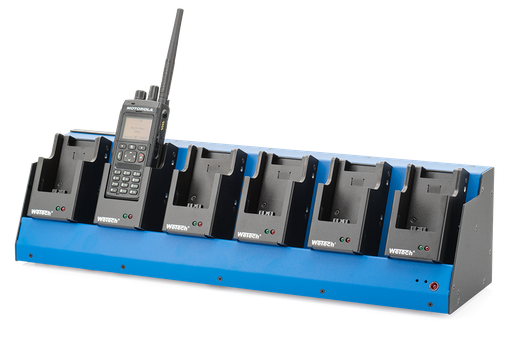

Programming Station for MOTOROLA radios MTP3250 and MTP6750.
**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-669USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.

**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-680
1x Power Supply \[700471\]
1x Manual

Desk Charger for SEPURA radios STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-681
1x Power Supply \[700471\]
1x Manual

Car-Desk Charger for MOTOROLA radios DP3400, DP3401, DP3600, DP3601, DP2400, DP4401, DP4800, DP4801, DP2400E and R7.
**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Advice**

MOTOROLA radio DP3441 does not fit in the DC636-4KFZ. Available for this radio is WTC644.
The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x DC636-6KFZ
1x Manual

Desk Charger for MOTOROLA batteries NNTN8020 und NNTN8023.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Contro Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-695 bV
1x Power Cable \[700472\]
1x Manual

PassivPlus Car Kit for HYTERA radios PD985.
Usable with batteries BL2016.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1904
1x DC Cable \[800023\]
1x Mounting Bracket \[800795\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Desk Charger for MOTOROLA radios DP3400, DP3401, DP3600, DP3601, DP2400, DP4401, DP4800, DP4801, DP2400E and R7.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-636 bV
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC676BNC-SQ.

**Scope of Delivery**

1x DC676BNC-SQ
1x Power Supply \[700471\]
1x Manual

Passiv Car Kit for TAIT radio TP3000.
Usable with batteries T03-330.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The particular active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1903
1x DC Cable \[800023\]
1x Mounting Bracket \[800084\]
1x Cable tie \[700113\]
4x Screw \[800025\]

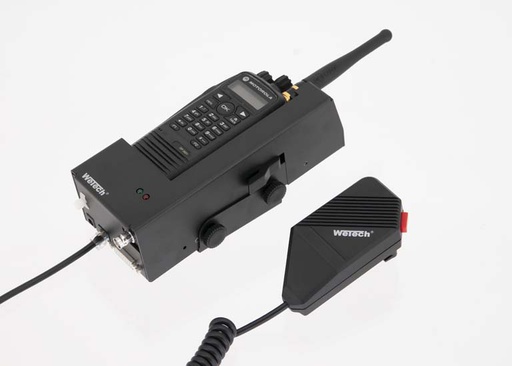

Active Car Kit for MOTOROLA radios DP3400, DP3401, DP3600 and DP3601.
Usable with batteries PMNN4077 and PMNN4104.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC662
1x DC Cable \[800023\]
1x Mounting Bracket \[800638\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC662 can be connected to a control console.
This Module is to purchase separately. For further informations see here:
