PassivPlus Car Kit for MOTOROLA radios MTP6550, MTP6650 and MTP6750.
Usable with batteries NNTN8020 and NNTN8023.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC623
1x DC Cable \[800023\]
1x Mounting Bracket \[800858\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive 2-in-1 Car Kit for MOTOROLA batteries NNTN8020 and NNTN8023.
**General Description**

The 2-in-1 Car Kit gives the opportunity to charge two additional batteries of your radio in your car.
The active function wether Fast Charge or Trickle Charge is displayed by the bicolour LED (red or green) for every charging slot.

Above mentioned batteries are compatible to MOTOROLA radios MTP3100, MTP3150, MTP3200, MTP3250, MTP3500, MTP3550, MTP6550, MTP6650 and MTP6750.

**Scope of Delivery**

1x WTC693
1x DC Cable \[800023\]
1x Mounting Bracket \[800868\]
1x Cable tie \[700113\]
4x Screw \[800025\]

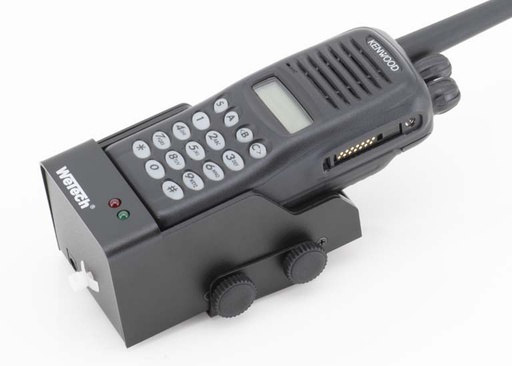

Passive Car Kit for KENWOOD radios TK-2180, TK-3180, NX-200, NX-230EX, NX-330EXE, NX-300 and NX-5200E.
Usable with batteries KNB-31A, KNB-32N, KNB-33L, KNB-47L, KNB-70LEX*, KNB-48L and KNB-L1.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Advice**

The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x WTC643
1x DC Cable \[800023\]
1x Mounting Bracket \[800354\]
1x Cable tie \[700113\]
4x Screw \[800025\]

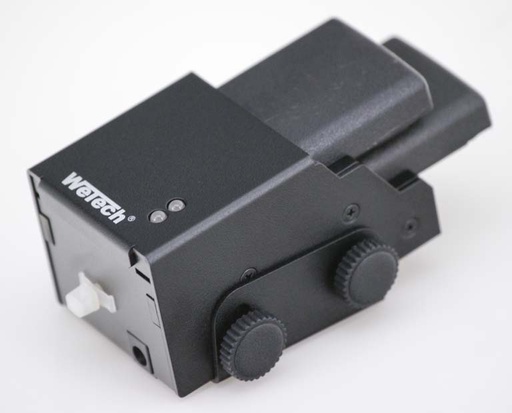

Passive 2-in-1 Car Kit for MOTOROLA batteries FTN6514, FTN4331 and PMNN4351.
**General Description**

The 2-in-1 Car Kit gives the opportunity to charge two additional batteries of your radio in your car.
The active function wether Fast Charge or Trickle Charge is displayed by the bicolour LED (red or green) for every charging slot.

Above mentioned batteries are compatible to MOTOROLA radios MTP850, MTP850s, MTP850FuG, CEP400, MTH650 and MTH800.

**Scope of Delivery**

1x WTC690
1x DC Cable \[800023\]
1x Mounting Bracket \[800531\]
1x Cable tie \[700113\]
4x Screw \[800025\]

PassivPlus Car Kit for SEPURA radios STP8000 and STP9000.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
Additional Accessory can be connected by SUB-D socket, for example a RS232 programming cable. Please note the pin assignment (see below).
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC672
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

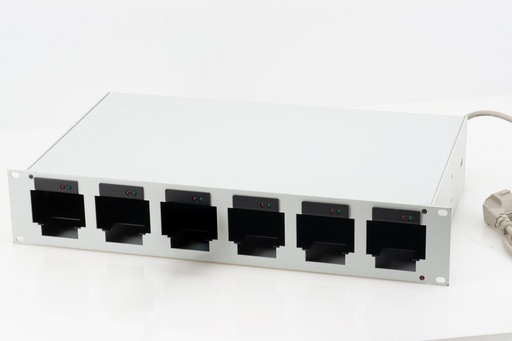

Rackcharger for MOTOROLA MTP3100, MTP3150, MTP3200, MTP3250, MTP3500, MTP3550, MTP6550, MTP6650 and MTP6750, and the Batteries NNTN8020 und NNTN8023.

**Scope of Delivery**:
1x Rackcharger RC669 [600237]

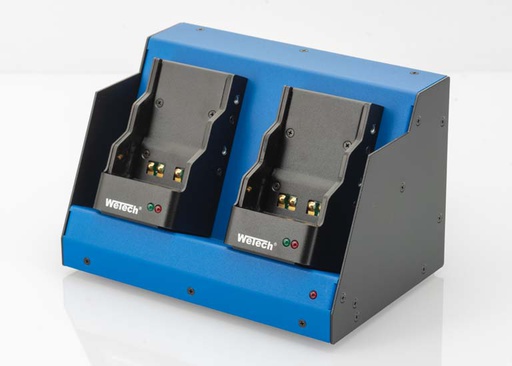

Car-Desk Charger for MOTOROLA radios GP344, GP388 and DP3441.

**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Scope of Delivery**

1x DC644-2KFZ
1x Manual

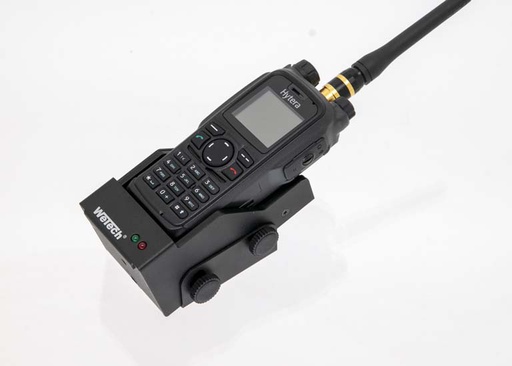

Passive Car Kit for HYTERA radios PD685, PD785, PT580 and PD795EX.
Usable with batteries BL1504, BL1807, BL1806, BL2006, BL1807EX, BL2008, BL2010, BL2503 and BL3001.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Advice**

The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x WTC618
1x DC Cable \[800023\]
1x Mounting Bracket \[800784\]
1x Cable tie \[700113\]
4x Screw \[800025\]

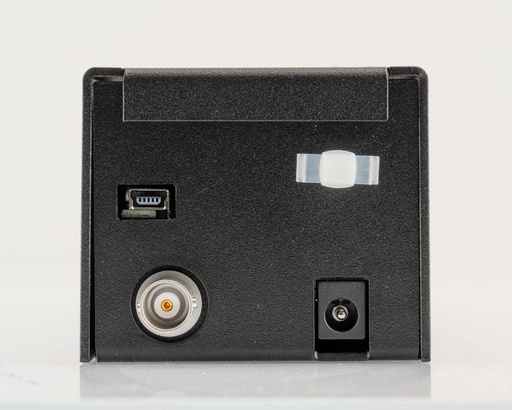

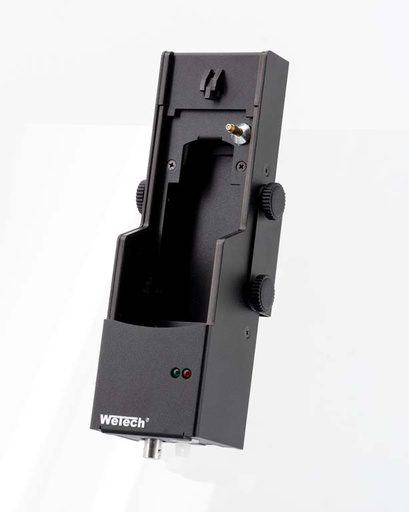

PassivPlus Car Kit for SEPURA radios SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
In the WTC1902USB is an USB data interface integrated about this the Car Kit can be connected to the PC with an USB cable,
which allows to programm directly in the Car Kit.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC1902USB
1x DC Cable \[800023\]
1x Mounting Bracket \[800584\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for REXON radios RL328S.
Usable with batteries BP21L and BP30L.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC616
1x DC Cable \[800023\]
1x Mounting Bracket \[800338\]
1x Cable tie \[700113\]
4x Screw \[800025\]

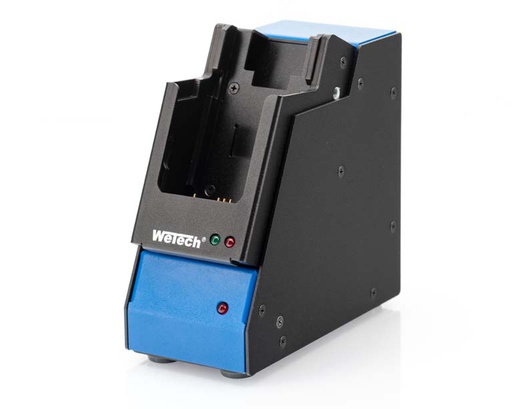

Programming Station for SEPURA radios SC2020.

**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP1-1702USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual



**Expansion for SEPURA SC21**

It is also possible to charge and program SEPURA SC21 radio in this Programming Station.
The Adapter Plate SC21 is inserted into the Charging Slot (see picture on the right).
The Adapter Plate is to purchase separately.

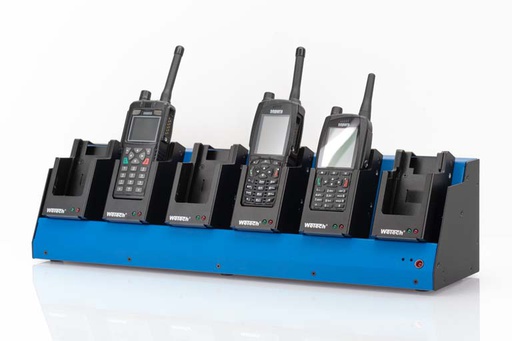

Programming Station for SEPURA radios SC20, STP8000, STP9000.

**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Special Solution**

This programming station was developed for the common SEPURA radios.
There are three charging slots for the STP8000 and STP9000 series and three charging slots for the SC20.

**Scope of Delivery**

1x DP6-1702-3-681-3USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

Desk Charger for SEPURA radios SC20, STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-1703BNC
1x Power Supply \[700471\]
1x Manual

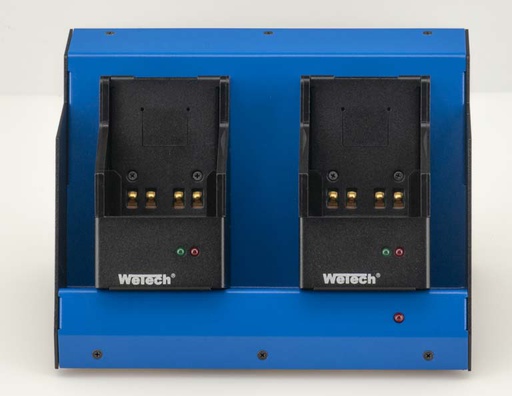

Car-Desk Charger for MOTOROLA radios DP3400, DP3401, DP3600, DP3601, DP2400, DP4401, DP4800, DP4801, DP2400E and R7.

**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Advice**

MOTOROLA radio DP3441 does not fit in the DC2-636. Available for this radio is WTC644.
The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x DC2-636
1x Manual

Programming Station for SEPURA radios SC20.

**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-1702USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

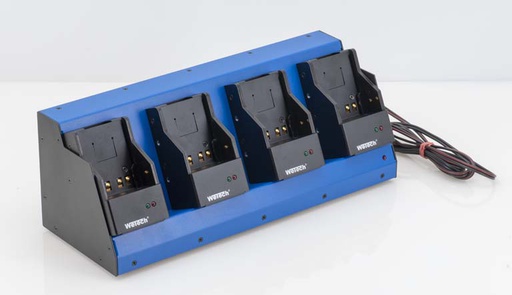

Car-Desk Charger for MOTOROLA radios DP3400, DP3401, DP3600, DP3601, DP2400, DP4401, DP4800, DP4801, DP2400E and R7.
**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Advice**

MOTOROLA radio DP3441 does not fit in the DC4-636. Available for this radio is WTC644.
The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x DC4-636
1x Manual

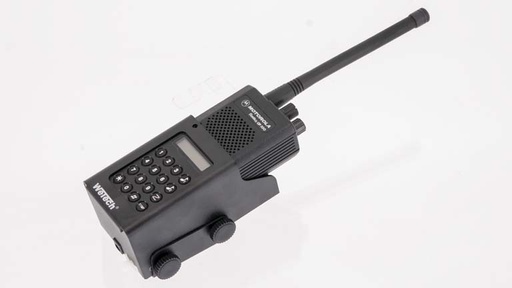

Passive Car Kit for MOTOROLA Funkgeräte GP300.
Usable with batteries H9628MHT, MNN9628, WPNN4840.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC602
1x DC Cable \[800023\]
1x Mounting Bracket \[800032\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Active Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-17 and R290.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Scope of Delivery**

1x WTC632
1x DC Cable \[800023\]
1x Mounting Bracket \[800229\]
1x Cable tie \[700113\]
4x Screw \[800025\]
1x Microphone MS61 \[600105\]
1x SUB-D socket 15-pin incl. Housing



**Additional Module AN014**

With the AN014 Squelch Module, the WTC632 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

PassivPlus Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-21N, CPKKNB17A and R290.
**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.
**Scope of Delivery**

1x WTC675
1x DC Cable \[800023\]
1x Mounting Bracket \[800644\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for ICOM radios IC-F31.
Usable with batteries BP-120, BP-211, BP-210, BP210N, BP-210FM and CPIB210N.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC648
1x DC Cable \[800023\]
1x Mounting Bracket \[800314\]
1x Cable tie \[700113\]
4x Screw \[800025\]
