Passive Car Kit for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC680
1x DC Cable \[800023\]
1x Mounting Bracket \[800459\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for MOTOROLA radios GP320 bis GP680, GP1280, GP340ATEX, GP380ATEX and MTP850EX.
Usable with batteries HNN4003A, PMMN4159AR, HNN9008A, NNTN5510AR, NNTN5510CR, NNTN7383A, HNN4001A, HNN9013D, HNN9012AR, PMNN4151AR.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Advice**

The use of EX batteries in our product is technically possible, but may not be desired by the radio manufacturer.
The manufacturer's specifications are decisive here.

**Scope of Delivery**

1x WTC620
1x DC Cable \[800023\]
1x Mounting Bracket \[800091\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit for MOTOROLA radios MTP850, MTP850s, MTP850FuG, CEP400, MTH650 and MTH800.
Usable with batteries FTN6574, FTN4331, PMNN4351.

**General Description**

In addition to the option to charge your radio in your vehicle, the WTC692 also has a charging slot for charging a spare battery.
We recommand to use an original belt clip for a save latch.

**Scope of Delivery**

1x WTC692
1x DC Cable \[800023\]
1x Mounting Bracket \[800459\]
1x Cable tie \[700113\]
4x Screw \[800025\]

PassivPlus Car Kit for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
In addition, a SUB-D connector is integrated in the WTC676, to which various additional modules can be connected or connections to other devices can be established.
The Pin Assignment can be found at the end of this product page.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Only usable with belt clip PMLN5616.

**Scope of Delivery**

1x WTC676
1x DC Cable \[800023\]
1x Mounting Bracket \[800693\]
1x Cable tie \[700113\]
4x Screw \[800025\]

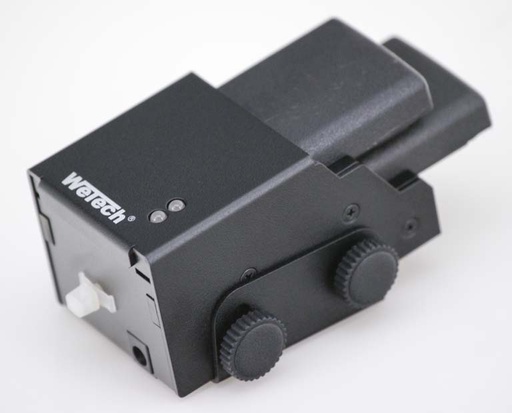

Passive 2-in-1 Car Kit for MOTOROLA batteries FTN6514, FTN4331 and PMNN4351.
**General Description**

The 2-in-1 Car Kit gives the opportunity to charge two additional batteries of your radio in your car.
The active function wether Fast Charge or Trickle Charge is displayed by the bicolour LED (red or green) for every charging slot.

Above mentioned batteries are compatible to MOTOROLA radios MTP850, MTP850s, MTP850FuG, CEP400, MTH650 and MTH800.

**Scope of Delivery**

1x WTC690
1x DC Cable \[800023\]
1x Mounting Bracket \[800531\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Passive Car Kit with PEI-Interface for MOTOROLA radio MTP850.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

The passive Car Kit is small and compact. It provides the functions of fast charge and trickle charge for your radio in the vehicle.
The active function is displayed by the two LED.
The Car Kit is connected to the on-board power supply.
We recommand to use an original belt clip for a save latch.

**Integrated PEI-Interface**

This special WTC680 has a PEI interface for connecting car kit to a LARDIS radio system.
The LARDIS system automatically recognizes the inserted radio and displays it on the screen.
The corresponding Pin Assignment for SUB-D plug you will find in the manual.

**Scope of Delivery**

1x WTC680
1x DC Cable \[800023\]
1x Mounting Bracket \[800459\]
1x Cable tie \[700113\]
4x Screw \[800025\]

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.
**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC676BNC.

**Scope of Delivery**

1x DC676BNC
1x Power Supply \[700471\]
1x Manual

Programming Station for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.

**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-680USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-680 bV
1x Power Cable \[700472\]
1x Manual

Programming Station for MOTOROLA radios MTP850, MTP850S and MTP850FuG.

**General Description**

The programming station offers to program your radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP1-680USB
1x Power Supply \[700471\]
1x USB Cable \[700203\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S und MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-676
1x Power Supply \[700471\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.

**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

**Scope of Delivery**

1x DC1-680
1x Power Supply \[700471\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC676BNC-SQ.

**Scope of Delivery**

1x DC676BNC-SQ
1x Power Supply \[700471\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC6-680
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850s, MTP850FuG, CEP400, MTH650 and MTH800.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.
A special highlight of the DP6-692USB is the additional possibility of charging an additional battery in each charging slot.
This saves space for spare batteries in your Operations Control Center.

**Scope of Delivery**

1x DC6-692 bV
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG,
and also for the batteries FTN6514, FTN4331 and PMNN4351.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected. This version has an additional charging slot for two spare batteries.
This gives you the opportunity to quickly swap a full battery for an empty one.
With the BNC connection you are able to connect an external antenna at the DC676BNC-690.

**Scope of Delivery**

1x DC676BNC-690
1x Power Cable \[700438\]
1x Manual

Car-Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.

**General Description**

The Desk Charger is available in different versions. Up to four charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC4-680
1x Power Cable \[700472\]
1x Manual

Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
Usable with batteries FTN6574, FTN4331 and PMNN435.

**General Description**

The Desk Charger is available in different versions. Up to six charging slots (also of different types) can be installed.
This version is suitable for Operations Control Center and is designed for common sockets.

**Scope of Delivery**

1x DC680-4-690-2
1x Power Cable \[700472\]
1x Manual

Programming Station for MOTOROLA radios MTP850.
**General Description**

The programming station offers to program parallel up to 6 radios with your programming software.
As soon as a radio is inserted into a charging slot, it is automatically recognized by the software and can be programmed.
In addition to programming, the standard functions of Fast Charge and Trickle Charge are given.
As usual is the active function displayed by the two LED on the Charging Slot.
A special highlight of the DP6-692USB is the additional possibility of charging an additional battery in each charging slot.
This saves space for spare batteries in your Operations Control Center.
The Programming station can be connected by USB connection to PC.

**Scope of Delivery**

1x DP6-692USB
1x Power Cable \[700472\]
1x USB Cable \[700203\]
1x Manual

Car-Desk Charger for MOTOROLA radios MTP850, MTP850S, MTP850FuG, CEP400, MTH650 and MTH800.
**General Description**

For connection to an auxiliary battery.
This product must not be connected to the on-board power supply!

**Scope of Delivery**

1x DC680-4KFZ
1x Manual
