PassivPlus Car Kit for SEPURA radios STP8000, STP9000 and SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for MOTOROLA radio MXP600.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.
Belt clip PMLN5616B fits. Belt clip PMLN8181A does not fit.

PassivPlus Car Kit for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.
Usable with batteries FTN6574, FTN4331 and PMNN4351.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
In addition, a SUB-D connector is integrated in the WTC676, to which various additional modules can be connected or connections to other devices can be established.
The Pin Assignment can be found at the end of this product page.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Only usable with belt clip PMLN5616.

PassivPlus Car Kit for MOTOROLA radios MTP6550, MTP6650 and MTP6750.
Usable with batteries NNTN8020 and NNTN8023.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for SEPURA radios STP8000 and STP9000.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
The radio is locked by a push mechanism at the top of the Car Kit.
Additional Accessory can be connected by SUB-D socket, for example a RS232 programming cable. Please note the pin assignment (see below).
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for SEPURA radios SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
In the WTC1902USB is an USB data interface integrated about this the Car Kit can be connected to the PC with an USB cable,
which allows to programm directly in the Car Kit.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Desk Charger for SEPURA radios SC20, STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

Active Car Kit for KENWOOD radios TK-290FuG11b.
Usable with batteries KNB-17 and R290.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Additional Module AN014**
**Additional Module AN014**

With the AN014 Squelch Module, the WTC632 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

PassivPlus Car Kit for SEPURA radios SC20.
Usable with original batteries.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
A data interface is also integrated in the WTC1902SER. A RS232 programming cable, for example, can be connected here.
Please note the pin assignment (see below). To use the PEI function, an additional license for the radio is required.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for MOTOROLA radios DP4801E UHF .
Usable with batteries PMNN4406 und PMNN4407.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Desk Charger for SEPURA radios STP8000 and STP9000.
**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC621BNC.

PassivPlus Car Kit for MOTOROLA radios MTP6550, MTP6650 and MTP6750.
Usable with batteries NNTN8020 and NNTN8023.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
Additional the WTC623USB can be connected to the PC with an USB cable so the radio can be programmed directly in the Car Kit.
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for HYTERA radio PD785 and PD705.
Usable with batteries BL2006 and BL2008.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

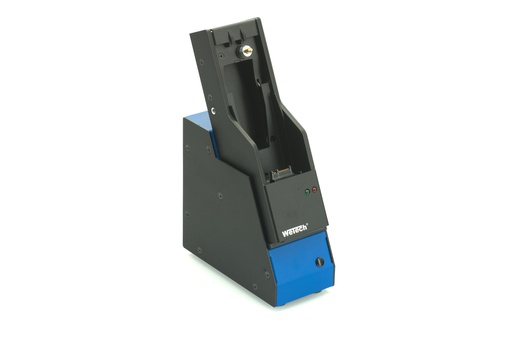

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.
**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC676BNC.

Active Car Kit for MOTOROLA radios GP1200, GP900 and HT1000.
Usable with batteries NTN7143, AL7143CD, H7143RX, H7143Li.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Additional Module AN014**
**Additional Module AN014**

With the AN014 Squelch Module, the WTC601 can be connected to a control console.
This Module is to purchase separately. For further informations see here:

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S und MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles and is designed for common sockets.
The standard functions of Fast Charge and Trickle Charge are provide as usual.

PassivPlus Car Kit for REXON radios RL328S.
Usable with batteries BP21L und BP30L.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The Car Kit is connected to the on-board power supply.

PassivPlus Car Kit for HYTERA radios PD985.
Usable with batteries BL2016.

**General Description**

Beyond to the usual functions of fast charge and trickle charge the PassivPlus Car Kit an external antenna adapter can also be connect.
An additional antenna adapter is required for this (not included), so the signal is used from the external antenna instead of the conventional signal from the radio.
This is to purchase separately .
The radio is locked by a push mechanism at the top of the Car Kit.
The Car Kit is connected to the on-board power supply.

Desk Charger for MOTOROLA radios MTP850, MTP830, MTP830S and MTP830FuG.

**Application Example**

This stationary Car Kit is suitable for operational vehicles, for example at funfairs, festivals or other mejor events.
An external antenna can be attached to the roof of the operation vehicle or the container and conneted to the Desk Charger.
The reception of your radio is not affected.
With the BNC connection you are able to connect an external antenna at the DC676BNC-SQ.

Active Car Kit for MOTOROLA radios DP3400, DP3401, DP3600 and DP3601.
Usable with batteries PMNN4077 and PMNN4104.

**General Description**

The active Car Kit gives the opportunity to connect an external antenna by the Car Kit with the radio.
An additional antenna adapter is required for this (not included). This is to purchase separately .
The Car Kit is connected with the lateral connection of the radio, so you can communicate by the supplied handmicrophone.
While using your radio in the Car Kit, the usual functions of fast charge and trickle charge are also available.
Additional Accessory can be connected by SUB-D socket.
The Car Kit is connected to the on-board power supply.

**Additional Module AN014**
**Additional Module AN014**

With the AN014 Squelch Module, the WTC662 can be connected to a control console.
This Module is to purchase separately. For further informations see here:
